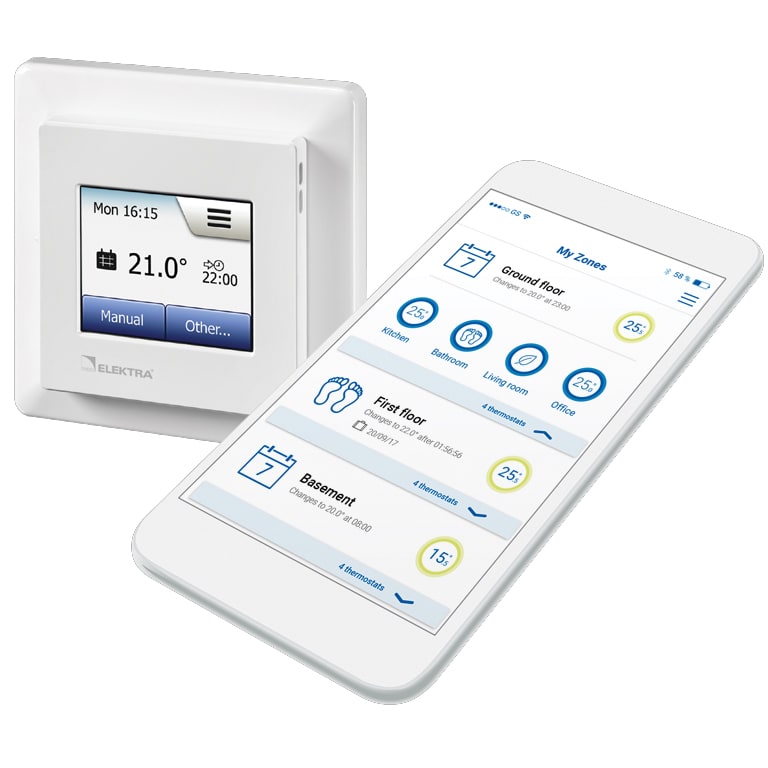

MWD5-WIFI Touchscreen Programmable Thermostat

ELEKTRA MWD5W is the new version of the acclaimed MWD5 touchscreen temperature controller, giving it WiFi functionality on top of all its familiar benefits. This allows users to control electric underfloor heating systems on any scale via an app, giving them easy access to full control.

By popular demand, the ELEKTRA MWD5 touchscreen controller for electric underfloor heating has been upgraded to a WiFi-enabled version that can be controlled by an app. This cloud-based solution combines an updated version of the MWD5 with the app. This means added functionality with complete reliability: the entire solution is based on tried and tested technology.

Main features of the ELEKTRA MWD5W WiFi Temperature controller

• Adds WiFi-based control to the acclaimed MWD5 Touch Controller
• Remote access and control via a user-friendly app
• Assists energy savings
• Universal compatibility with all the most popular electric underfloor heating systems
• Simple set-up with installation wizard
• Very easy installation
• For individual control or heating zone control
• Multiple users allowed
• No gateways required
• Supports WPS
• All the benefits of the acclaimed MWD5 Touch Controller

Technical specifications:

• Power supply: 100-240VAC
• Max. load: 16A
• Installation: flush
• Built-in switch: 2-pole, 16A
• Comfort temperature range: +5°C; +40°C for each event
• Economical temperature range: +5°C; +40°C for each event
• Protection: IP 21
• Dimensions (H x W x D): 82 x 82 x 40 mm
• Display: 176 x 220 pixels, TFT
• Wireless control: WiFi (cloud)
• Certificates: VDE, BEAB
• Product marking: CE
