WoodTec Foil Heating Mat

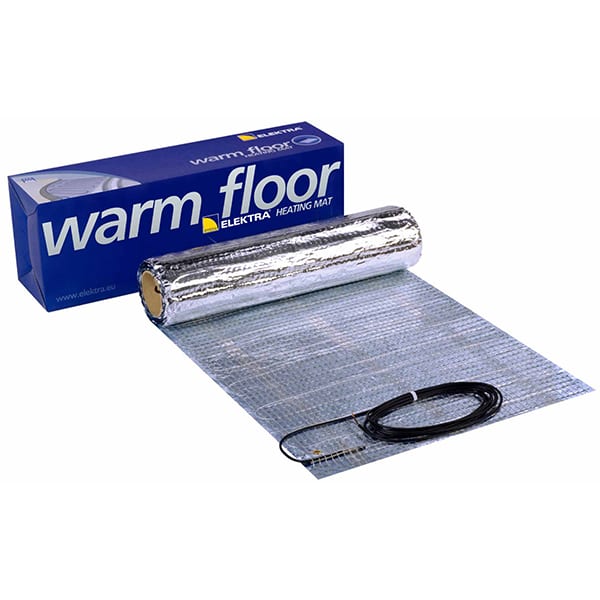

Elektra WoodTec Underfloor Heating System

The Elektra WoodTec underfloor heating system is an innovative and efficient solution designed specifically for laminate and engineered wood flooring. Each 140W/m² heating mat is securely attached to a fiberglass mesh and backed with protective aluminum foil. This design ensures both safety and uniform heat distribution, while the aluminum foil also serves as an earth shield, making it ideal for use in wet areas.

Effortless Installation and Versatile Application

With a slim profile of just 2.8mm and a width of 500mm, Elektra WoodTec heating mats are designed to cover 85%-90% of the floor area, ensuring consistent and efficient warmth. For larger spaces, multiple mats can be connected in parallel, allowing for seamless installation in rooms of various sizes.

Important: A 5mm XPS insulating underlay is required for optimal performance and efficiency.

Key Features

• Premium 140W/m² Heating Mat – Provides effective and energy-efficient heating for laminate and engineered wood floors.
• Aluminum Foil Backing – Acts as a protective shield (earth), ensuring safety in wet areas.
• Ultra-Thin Design – At just 2.8mm thick, the mat integrates seamlessly with flooring.
• Optimized Heat Coverage – Covers 85%-90% of the floor surface, delivering uniform warmth.
• Scalable Installation – Multiple mats can be connected in parallel to accommodate larger spaces.
• Lifetime Guarantee – Backed by UK-based technical support for installation and operation.
• Certified Quality – CE Certified and manufactured in Europe under ISO 9001 standards.

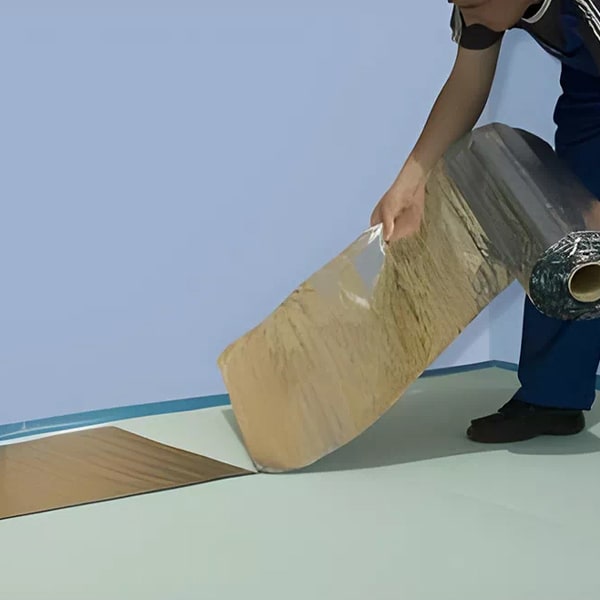

Installation Guidelines

• A 5mm XPS insulating underlay is essential to enhance performance and efficiency.
• Laminate or engineered wood flooring can be installed directly over the WoodTec heating system without additional underlay.
